Cups printed on Desco MachineryThe Desco range of cup and cylindrical container printers are available in various specifications with up to six color printing and the capability to handle straight wall and tapered profiles. We are always happy to make recommendations to suit specific production requirements.

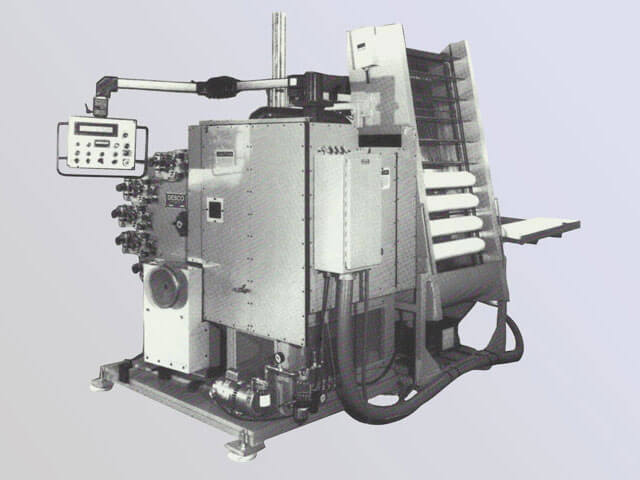

DHSP-5-UVM Five Color

DHSP-5 UVM - Five Color Cup Printer

UV Drying on Mandrel

DHSP-5 UVM - Five Color Cup Printer frrom Desco

Benefits

  • Welded steel construction
  • Positive timing throughout machine
  • Perfect register printing up to five colors
  • Complete vacuum system provided
  • Swing-away ink roll sections
  • Variable speed DC drive
  • Completely automated systems
  • Ultraviolet curing of ink while container is on mandrel



Accessories & Options

  • Magnetic or pin bar clamp plate cylinders
  • Orientation system
  • Flamer or corona pre-treating system
  • Inventory stack feed system
  • Automatic re-stack and count system
  • UV cure on mandrel system
  • Programmable logic control
  • Status indicator



Specifications

Maximum container diameter 6.5" (165mm)
Maximum container height 8" (203mm)
Maximum printing height 6" (152mm)
Maximum printing length
- magnetic
- pin bar

18.5" (470mm)
16" (406mm)
Maximum taper 17° per side
Power As required
Weight of basic machine 7,500 lbs.
